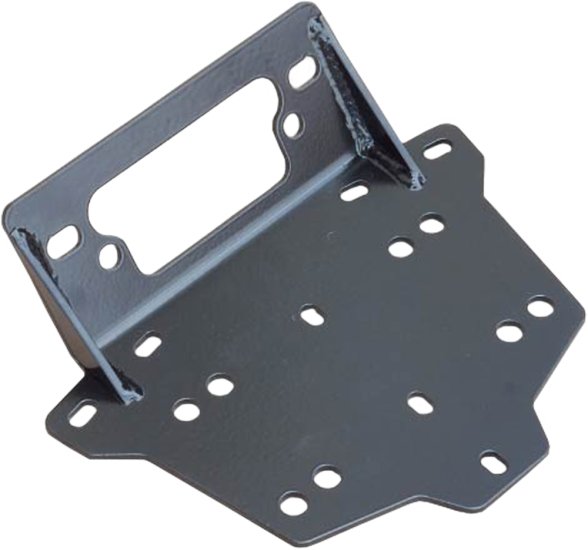

Brand new "KFI" Winch Mount for the following Can-Am UTV's:

2013-2018 Can-Am Mavrick's
!Will NOT work on any "X ds" or "X rs Turbo" Models with aluminum front bumper!
See Figures below

** = Requires the purchase of #UTV-WEK (wire extension kit) Due to location of battery.

Maverick Models Years
Maverick 1000R '13-18
Maverick 1000R Turbo 2018
Maverick X mr 1000R '14-18
Maverick X rs 1000R '13-18
Maverick X xc 1000R '14-18
Maverick xc 1000R 2018
Maverick Max 1000R & Turbo '14-18**
Maverick Max X rs 1000R '14-18**

Designed to work with the following winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50x / AS-50wx
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
WARN: Vantage 4000lbs / ProVantage 4500lbs
RAMSEY: ATV2500 / ATV3000
SUPERWINCH:Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500lbs #2955AT
Requires fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500, 3500
BADLAND: 2-Hole Winches (Click Here for Details)
BADLAND: Standard Winches (Click Here for Details)
BADLAND: WIDE Winches (Click Here for Details)
CHAMPION: 2-Hole Winches (Click Here for Details)
CHAMPION: ATV 4-Hole Winches (Click Here for Details)
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
4-Hole Standard (3.00" x 4.875" bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up
All with 3.00" x 6.600" bolt pattern mount-up
Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)
QUADBOSS: RP25 / RP35


Specifications:

100% MADE IN USA.
Constructed of 3/16” steel
Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
Powder coated black for supreme durability.
Complete installation instructions included.
All mounting hardware included.
Satisfaction guaranteed.
Roller fairlead and winch not included.
